Description
Product Description

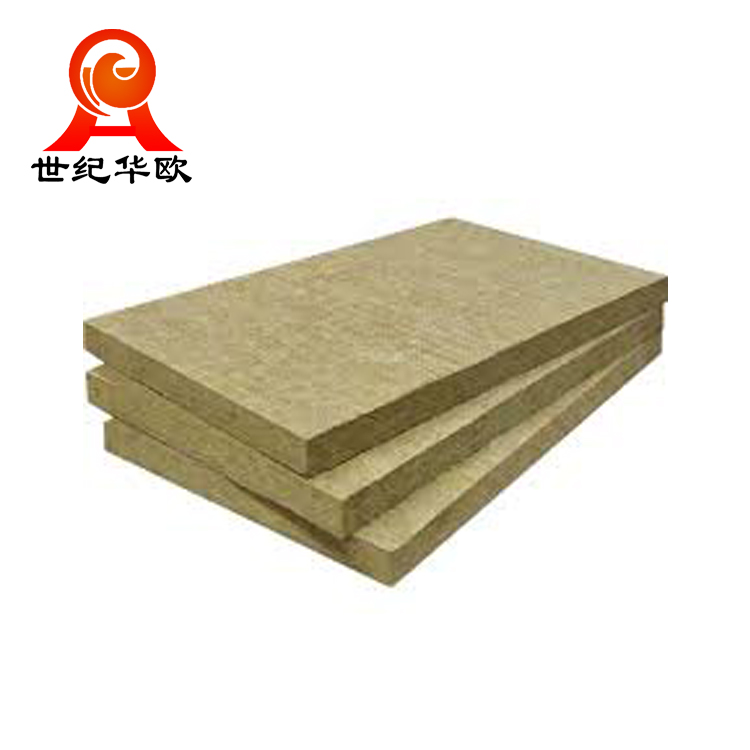

Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool





Standard Sizes



Nominal Density(kg) 60-200kg
Size: L*W(mm) 1.2m*0.6m, 2.5m*1.2m
Thickness(mm) 25-150



Remarks: Other sizes available upon request.



Technical Parameters

Propertities Value Unit Standard
Bulk Density Tolerence ±10 %

AS 1530.4-1997/ISO 834

ASTM E119/JIS A 1304/BS 476:Pt22

Fiber Diameter 5±1 μm ASTM E84/UL 723
Shot Content ≤5(Coarse shot size≥0.25mm)



≤30(Ultimate shot size≥0.063mm)

% ASTM E84



UL 723

Combustion Performance Non-combustible



Reation to fire-Class A1

ENISO1182



EN13501-1

Thermal Conductivity (Average Temp 20℃) 0.036-0.039 W/mk ASTM C518



GB/T 19686-2005

Moisture Absorption ≤0.04 % by Vol ASTM C1104
Water absorption   kg/m2 EN 1609
Melting Point >1000
Service temperature 350-650 ASTM C411



 mineral wool board Insulation has below features:

  • High Compressive Strength and tensile strength

  • Good water repellence and air permeability; low moisture absorption

  • It doesn't burn, can effectively prevent flame spread in case of fire

  • Excellent sound absorption performance

  • Good safety and convenient performance

Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool

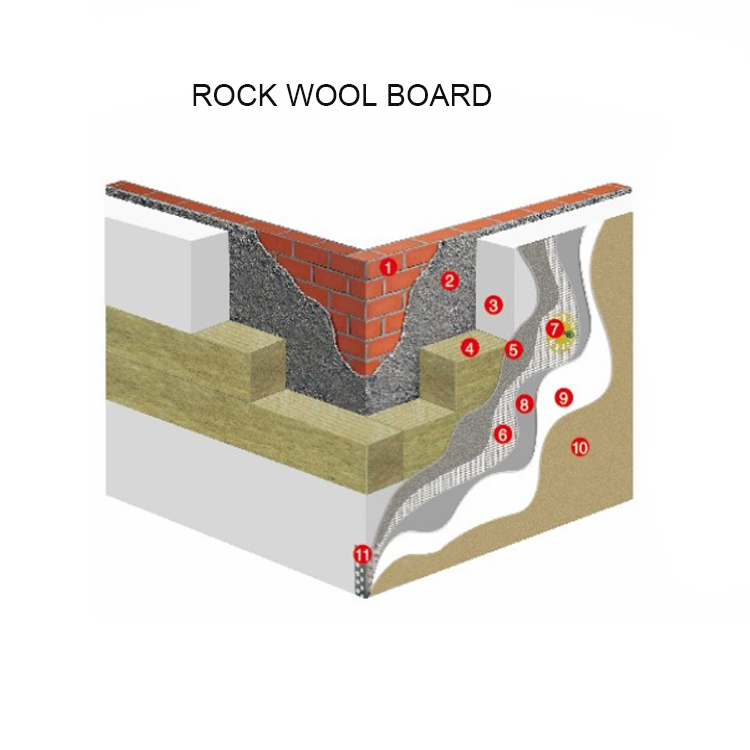

Rock Mineral Wool Facade Insulation



Packaging & Shipping



Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool

1. Packing Details: Heat shrink plastic packing



2. Delivery time: It's depends on your quantity. Normally we can delivery within 4 days.

 Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool

Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool

Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool

Fibre Mineral Wool insulation sheet for Building fire resistant mineral wool plank heat thermal board rock mineral wool





 Stone Wool board can be used as thermal insulation and sound proof material for:

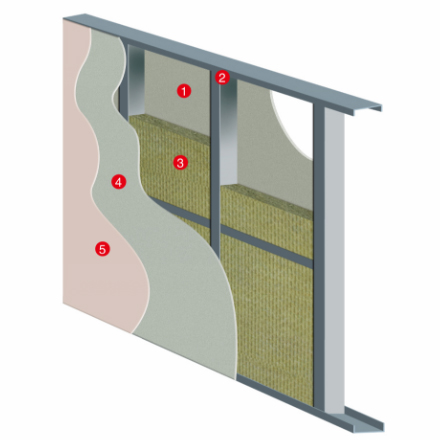

  •  mineral wool panel is applicable to thin plaster insulation system for exterior wall, mainly used with the typical structure as shown in following picture.

  •  mineral wool fire barrier lamella is applicable to exterior wall insulation system made of non-grade-A insulating materials. It can effectively prevent flame spread in case of fire.

  •  mineral wool panel can also be used in exterior wall insulation system for non-transparent curtain wall.

  • Applicable to a variety of building structures with requirements on high compressive strength and point load

  • Usually applied in insulating layer and bearing layer of flexible waterproof roofing system; constituting roof covering system together with flexible waterproof rolls, vapor barrier layer and system fasteners.

  • Widely used in workshops, airports, shopping malls, sports venues, stroage facilities and other stee-structure metal roofing systems or water-resistant systems for concrete flat roofing.
